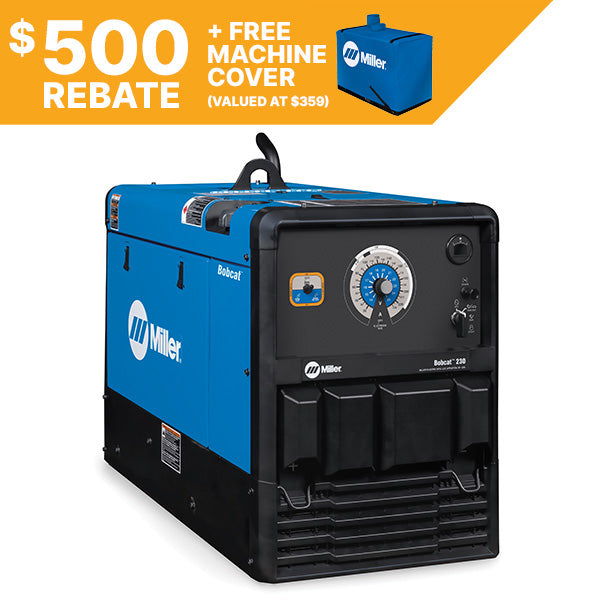

Miller Bobcat™ 230 (Kohler) – Reliable Engine-Driven Welding Power

Miller Bobcat™ 230 (Kohler) – Reliable Engine-Driven Welding Power

$8,699.00 CAD
$8,699.00 CAD
Sale Sold out
Shipping calculated at checkout.

Miller Bobcat™ 230 (Kohler) – Reliable Engine-Driven Welding Power

Special Offer: From October 1st 2024, to March 31st, 2025, purchase the Bobcat™ 230 (Kohler) and receive a $500 rebate through Miller's Build with Blue program. Plus, enjoy free delivery within 300 km of Goderich, Ontario.

Overview

The Miller Bobcat™ 230 (Kohler) is an engine-driven welder designed for exceptional reliability and performance in tough environments. Ideal for construction, farming, ranching, and maintenance/repair operations (MRO), this machine provides reliable power and versatility for both stick and flux-cored welding.

Key Features

  • Rugged Durability: Built with copper windings and robust internal components to withstand the harshest conditions.
  • Enhanced Cooling Technology: Keeps the engine running at peak performance and prolongs its life.
  • Jobsite Safety: Equipped with protective doors covering weld studs and receptacles, meeting OSHA and CSA standards.
  • Built-in Lift Hook: Integrates into the machine’s center frame for added durability and ease of handling.
  • Portability Options: Comes with a standard lift eye, optional running gear/cart, or trailer for easy transport.

Specifications

  • Engine Brand: Kohler
  • Horsepower: 23.5 hp
  • Engine Idle Speed: 2300 RPM
  • Engine Weld Speed: 3600 RPM
  • Fuel Tank Size: 11 gallons
  • Fuel Type: Gasoline
  • Rated Output:
    • CC/DC Stick Welding: 230 A at 29.2 V, 100% duty cycle
    • CV/DC MIG/FCAW: 230 A at 25.5 V, 100% duty cycle
  • Single Phase Auxiliary Power:
    • Continuous Power: 9500 W
    • Peak Power: 11000 W
  • Sound Rating: 64 dB at idle, 73 dB at weld
  • Weld Output: CC / CV
  • Weldable Metals: Steel, Stainless Steel
  • Applications: Fabrication, Industrial Welding, Mobile Fabrication & MRO
  • Dimensions:
    • Net Width: 20.13 in
    • Net Height: 26.5 in
    • Net Length: 37.06 in
  • Net Weight: 376 lbs
  • Warranty: 3 Years, Miller's True Blue Warranty

Processes

  • Stick (SMAW)
  • Flux-Cored (FCAW)

Why Choose the Miller Bobcat™ 230?

Designed for reliability and performance, the Bobcat™ 230 (Kohler) is perfect for professionals needing a high-quality, mobile power source. It can handle tough jobs in construction, farming, and industrial fabrication, ensuring you have dependable power wherever you go.

Take advantage of the limited-time rebate and free delivery offer to enhance your welding capabilities with the Miller Bobcat™ 230.
