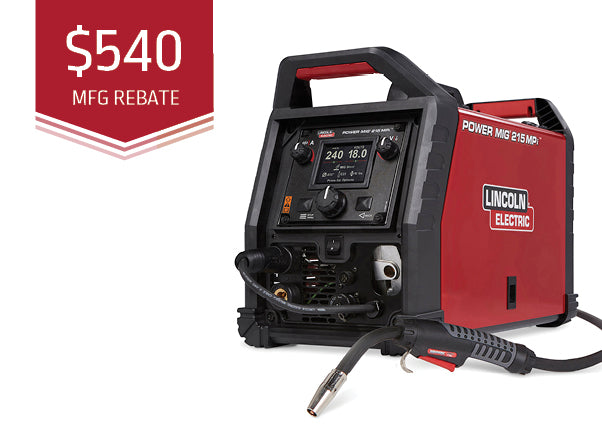

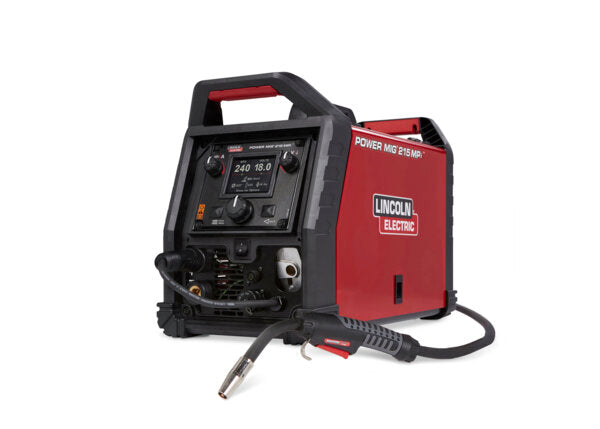

Lincoln POWER MIG 215 MPi Multi-Process Welder - SIMPLE, VERSATILE, RELIABLE
Lincoln POWER MIG 215 MPi Multi-Process Welder - SIMPLE, VERSATILE, RELIABLE
Couldn't load pickup availability
SIMPLE, VERSATILE, RELIABLE
Lincoln Power MIG® 215MPi - Technical Specifications
Machine Inputs & Outputs
-
Phase 1 Input Voltage #1: 120V/1 Phase/60Hz
- MIG Output: 105A/19.25V/40%, 80A/18V/100%
- TIG Output: 130A/15.2V/40%, 100A/14V/100%
- Stick Output: 85A/23.4V/40%, 60A/22.4V/100%
- Input Current at Max Rated Output: 22A
-
Phase 1 Input Voltage #2: 230V/1 Phase/60Hz
- MIG Output: 215A/24.8V/30%, 120A/20V/100%
- TIG Output: 175A/17V/30%, 110A/14.4V/100%
- Stick Output: 175A/27V/30%, 110A/24.4V/100%
- Input Current at Max Rated Output: 29A
Product Weights & Dimensions
- Dimensions (H x W x D): 15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm)
- Net Weight: 48 lbs (21.8 kg)
Machine Processes & Features
-
Processes Supported:
- Stick (SMAW)
- Flux-Cored (FCAW)
- TIG (GTAW)
- MIG (GMAW)
-
Maximum Rating: 220A
-
Output Range by Mode: MIG: 20-220A
-
Operators Supported per Machine: 1
-
Communication Technology: Digital
-
Work Lead Connector Type: Dinse
-
Welding Gun Cable Assembly: Magnum PRO 175L
-
Work Cable Length: 10 ft
-
Spool Gun Compatibility: Light-duty
Wire & TIG Feeders
- UI Type: TFT Graphic
- Processes Supported: MIG, Flux-Cored
- Contact Tips Included: Yes
- Wire Thickness Range: 0.025 in – 0.045 in (0.6 mm – 1.1 mm)
- Sample MIG Wire Included: Yes
Basic Specifications
- Input Voltage: 120/230
-
Input Current:
- 120V: 15A
- 230V: 15.9A
- Frequency: 60Hz
- Input Phase: 1
- Input Power: 120/230/1/60
-
Output Range:
- 120V: 20-140A DC
- 230V: 20-220A DC
- Max OCV: 56V
- Polarity: DC
-
Rated Output:
- 120V: 105A/19.3V/40%
- 230V: 215A/24.8V/30%
Applications
- Automotive
- Breweries & Distilleries
- General Fabrication
- Maintenance & Repair
- Repair Welding
Warranty
- Warranty Coverage: 3 Years
Take your welding capabilities to the next level with the Lincoln Power MIG® 215MPi, a powerful and versatile machine designed for precision and performance. Get a $540 rebate on purchases from January 1 to June 30, 2025!
-
