Venture™ 150 S Battery-Powered Stick & TIG Welder with Charger Package

The Venture™ 150 S is a lightweight, compact, and fully portable battery-powered welder designed for professionals who need reliable Stick and TIG welding performance in the field. With swappable 400 Wh battery packs, rapid charging options, and a 100% duty cycle at maximum output, this welder is built to keep you working all day—no matter where the job takes you.

Key Features & Benefits

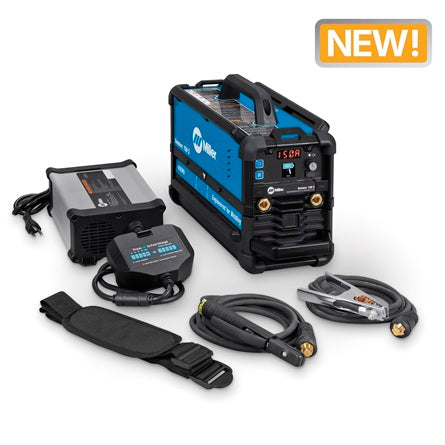

• Complete Package – Includes Venture™ 150 S power source, 400 Wh battery, charger, shoulder strap, rubber bumpers, work cable with clamp, and electrode holder.

• Save Time on Every Job – Faster setup and pack-up can save up to 250 hours annually.

• Compact & Portable – Lightweight design with handle and strap makes it easy to carry between job sites.

• Swappable Battery Packs – Weld anywhere with long-lasting power; batteries are lightweight and quickly replaceable.

• Reliable Output – Delivers a 100% duty cycle at maximum amperage, ensuring consistent performance.

• 6010 Stick Electrode Capability – Superior Stick arc performance, even with difficult-to-run electrodes like E6010.

• Hot Start™ Technology – Provides smooth arc starts without sticking.

• Lift-Arc™ TIG Start – Minimizes contamination without high frequency.

• Fan-On-Demand™ Cooling – Reduces noise, energy use, and dust intake.

• Thermal Overload Protection – Prevents damage if the duty cycle is exceeded.

• Low OCV Stick Mode – Reduces open-circuit voltage when not in use for safer operation.

• Stick-Stuck Detection – Automatically shuts off output if the electrode sticks to the workpiece.

Specifications

• Processes: Stick (SMAW), TIG DC (GTAW-DC)

• Amperage Range: Stick 20–150A | TIG 10–160A

• Material Thickness: Steel 0.020 in. (0.5 mm) – 3/16 in. (4.8 mm)

• Open Circuit Voltage: Max 80 VDC

• Battery: 400 Wh, >1,000 charge cycles with proper care

• Charge Time: 0–95% in under 30 minutes (fast charge) or 60 minutes (standard charge)

• Runtime Per Charge: Supports multiple Stick electrodes or up to 15.5 minutes TIG welding at 100A

• Input Voltage (Machine): 57.6 VDC

• Input Voltage (Charger): 120V, 1-Phase, 50/60 Hz

Applications

The Venture™ 150 S is engineered for field welding and mobile fabrication, excelling in:

• Construction & Fabrication

• Pipeline & Process Pipe Welding

• Mining & Power Plants

• Railcar, Shipbuilding & Transportation

• Aerospace & Automotive (customizing/restoration)

• General MRO (Maintenance, Repair & Operations)

✅ Why Choose the Venture™ 150 S?
With its fast-charging swappable batteries, compact portability, and powerful 150A Stick/TIG output, the Venture™ 150 S offers unmatched flexibility for welders working in demanding industries. Designed for efficiency, durability, and true off-grid welding performance, it’s the perfect solution for professionals who need reliable results anywhere.

Venture™ 150 S – Machine Only Package (907888)

The Venture™ 150 S Machine Only Package includes the compact, lightweight Venture™ 150 S power source without batteries or charger. Ideal for professionals who already own compatible battery packs and chargers, this unit delivers Stick (SMAW) and TIG DC (GTAW-DC) welding with a wide amperage range and 100% duty cycle at maximum output. Pair it with Venture™ 400 Wh batteries for full portability and off-grid welding power.

Best For: Users who want to expand their fleet of Venture™ machines while sharing existing batteries and chargers.

Venture™ 400 Wh Battery Pack (301756)

The Venture™ 400 Wh Battery Pack is designed for maximum portability and long-lasting performance. With fast charging (0–95% in under 30 minutes) and a lifespan of over 1,000 charge cycles, this lightweight, swappable battery allows welders to keep working without interruption. Compatible with the Venture™ 150 S, it delivers reliable power for both Stick and TIG welding applications.

Best For: Welders needing extra runtime or backup power for all-day welding in the field.

Venture™ Charger (301755)

The Venture™ Charger keeps your welding operations running smoothly by fully recharging a Venture™ 400 Wh Battery Pack in under 60 minutes. Designed for durability and efficiency, this charger is compact and jobsite-ready, making it easy to keep spare batteries topped up for continuous use.

Best For: Welders who want fast battery turnaround and uninterrupted productivity on remote or demanding jobsites.
