Canadian-Made Multiprocess 1601 Welding Machine – MIG, TIG, Stick, and Flux-Cored

Canadian-Made Multiprocess 1601 Welding Machine – MIG, TIG, Stick, and Flux-Cored

Powerful, Portable, and Designed for Every Welder

The Canaweld Multiprocess 1601 is a Canadian-made, ultra-portable welding machine engineered for welders of all skill levels—from beginners to professional fabricators. Designed, assembled, and tested in Toronto, Ontario, this lightweight yet powerful welder delivers precision, reliability, and versatility in every job.

Whether you need MIG welding, Flux-Cored, Stick, or TIG with Lift Arc start, the Multiprocess 1601 handles it all. Its synergic control system automatically adjusts parameters based on your material and wire type, making it easy for less experienced welders to achieve professional-quality results. Think of it as having your own welding expert right at your side.

This unit is 115 V (±15%) compatible, ideal for standard single-phase electrical networks, and works seamlessly with Canaweld’s spool gun for effortless Aluminum MIG welding.

Canadian Craftsmanship You Can Trust

Proudly Ontario Made and CSA Certified, Canaweld welders are built with strict quality control standards to ensure long-lasting durability and safety. Each unit is tested under extreme conditions to guarantee consistent performance, even in challenging Canadian environments.

Key Canadian-Made Benefits:

• Designed, assembled, and tested in Canada for local reliability

• CSA certified – meets strict Canadian safety and quality standards

• Comprehensive 4-year warranty for peace of mind

• Rugged construction ensures durability in industrial and workshop conditions

Advanced Welding Features for Maximum Versatility

• Multi-Process Capability: MIG, MIG Synergic, MIG Flux-Cored, TIG DC Lift (No HF), Stick DC

• User-Friendly Digital Panel: Step-by-step setup and automatic parameter adjustment

• Polarity Changeover: Supports most gas and gasless wires

• Energy-Saving Fan Function: Runs only when needed to extend machine life

• Replaceable Double Groove Rolls: Tool-free for easy maintenance

• Spool Gun Compatible: Ensures hassle-free aluminum MIG welding

• Adjustable Settings: Voltage, wire speed, waveform, burn-back, material type, wire diameter, and 2T/4T control

• Compact Portability: Only 19 lb (8.6 kg) with dimensions 16.9" × 8.8" × 11.8" (430 × 225 × 300 mm)

Weldable Metals: Aluminum, Steel, Stainless Steel, Chrome-Moly, Titanium, Copper

Technical Specifications

Input Voltage: 105–120 V (±10%)
Welding Current Range: 30–140 A
Duty Cycle at 104°F (40°C):

• MIG/Flux-Cored: 70 A @ 100%, 90 A @ 60%

• TIG Lift ARC: 80 A @ 100%, 100 A @ 60%

• Stick: 60 A @ 100%, 80 A @ 60%

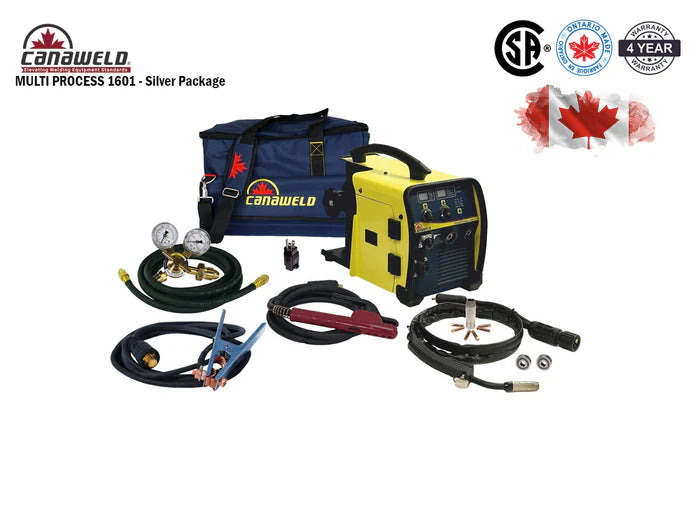

What’s Included – Silver MIG Essentials Package

A total value of $796.89 CAD, including all the accessories you need to get started:

• 200A Complete Ground Clamp Assembly Set – SKU: CWGC200A-4-10-35D

• 200A Complete Electrode Holder Assembly Set – SKU: CWEL200A-4-10-35D

• Gas Welding Hose – SKU: TLJ1080188

• Argon/CO₂ Pressure Regulator – SKU: CW-RLV-150-60CF-AR

• Adapter Plug 20A-15A – SKU: CGA9980063

• MIG Gun T-Style Consumable Kits – SKU: ALPCON1601

• Canaweld Bag – SKU: TGJ2780145

• MIG Gun 141 – SKU: CWMIG-141-E

• Drive Rolls – SKU: TGL0480458 / TGL0480464 / TGL0480462

Why Choose Canaweld Multiprocess 1601?

✔ Canadian-Made Quality – Designed, built, and tested in Toronto, Ontario
✔ Multi-Process Welding – MIG, TIG, Stick, Flux-Cored for maximum versatility
✔ Synergic Control for Easy Setup – Ideal for novice and professional welders alike
✔ Lightweight and Portable – 19 lb for easy transport between job sites
✔ Comprehensive Warranty & CSA Certification – Trusted Canadian reliability

The Canaweld Multiprocess 1601 combines Canadian craftsmanship, advanced digital welding technology, and multi-process versatility, making it the ultimate portable welder for professional performance anywhere.
