Huronia Welding & Industrial Supplies

K4779-1

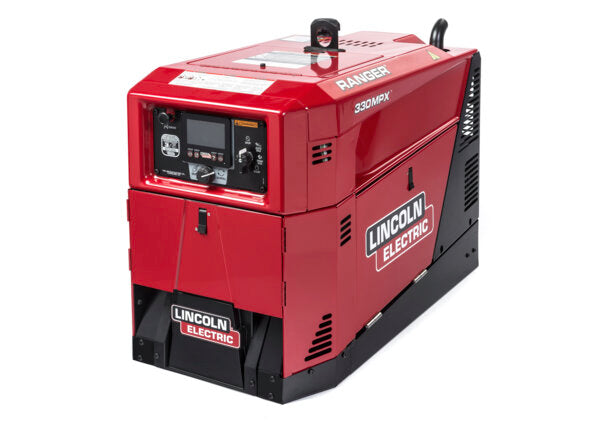

Ranger® 330MPX EFI Welder/Generator Engine Drive (Kohler®)

Ranger® 330MPX EFI Welder/Generator Engine Drive (Kohler®)

$12,850.00 CAD
$12,850.00 CAD
Sale Sold out
Shipping calculated at checkout.

Lincoln Ranger® 330MPX™ EFI Engine Driven Welder

Rebate Offer: Buy a Ranger® 330MPX™ EFI welder and receive a $1,350 rebate. Valid from January 1 to June 30, 2025.

Overview

The Ranger® 330MPX™ EFI welder/generator is engineered for all-season performance. Equipped with a 25 HP EFI Kohler® engine, it ensures reliable starts in cold weather, improved fuel efficiency, and consistent performance at high altitudes and extreme temperatures. Its modern design and advanced features streamline welding operations and boost efficiency.

Advantages

  • SMALLER:

    • Up to 20% smaller footprint and 25% lighter than similar machines.
    • Easier transport with less bulk, leaving space for additional tools and equipment.

  • SMARTER:

    • Digital user interface improves weld precision and productivity.
    • Maintenance screens track engine hours for optimal service scheduling.

  • QUIETER:

    • Operates up to 60% quieter than comparable models, enhancing workplace comfort and safety.

Key Features

  • Kohler® EFI Gasoline Engine:

    • Delivers easier starts in cold conditions and better fuel economy.
    • Electric fuel pump prevents vapor lock in high-altitude operations.

  • Advanced Welding Technologies:

    • Ready.Set.Weld®: Intuitive push-and-turn controls simplify setup.
    • Chopper Technology®: Ensures smooth arc starts, consistent performance, and minimal spatter.
    • ArcFX™ Technology: Visual feedback on how settings impact weld quality.

  • CrossLinc™ Remote Technology:

    • Allows voltage control via a common weld cable for seamless adjustments.

  • Clean AC Generator Power:

    • Provides 10 kW of continuous, stable power to run job site tools.

  • High Performance:

    • 330A/28V for 100% duty cycle welding with 1/4 in. 7018 electrode.
    • Supports arc gouging with up to 3/16 in. carbon electrodes.

  • Operator Security:

    • Passcode protection for supervisors and operators to lock settings and modes.

  • Welding Modes:

    • Supports stick, TIG, MIG, flux-cored, and downhill pipe welding.

Specifications

  • Dimensions: 26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm)
  • Weight: 446 lbs (202 kg)
  • Engine: Kohler OHV Command ECH740, 25 HP, air-cooled gasoline engine
  • Fuel Tank Capacity: 11 gal. (41.6 L)
  • Oil Capacity: 2.0 qts. (1.9 L)
  • Auxiliary Power Output:
    • 10,000 watts continuous, 120/240V
    • Receptacles: NEMA 5-20R, NEMA 6-50R, NEMA 14-50R

Applications

Ideal for:

  • Construction
  • General fabrication
  • Structural welding and fabrication
  • Maintenance and repair tasks

Warranty

Includes a 3-Year Warranty on parts and labor (engine warranty provided separately by Kohler).

The Lincoln Ranger® 330MPX™ EFI is the ultimate welding solution for professionals looking for compact, efficient, and reliable performance.
