ESAB EM 210 & EMP 210 Inverter Welding Systems – Portable, Powerful, and Professional

The ESAB EM 210 and ESAB EMP 210 are lightweight, inverter-based welding systems built for serious results in steel, stainless steel, and aluminum welding applications. Delivering professional-grade arc characteristics and fully digital controls, these compact machines allow you to fine-tune arc performance for superior weld quality every time.

Weighing under 29 lbs (13 kg) each, the EM 210 and EMP 210 are designed for true portability. With dual-voltage 120/230V flexibility, you can take these welders wherever the job requires—whether it’s around the shop, out in the field, or in your home garage.

Key Features and Benefits

• Professional Arc Performance – Digital controls provide precision fine-tuning for MIG, Flux-Cored, and optional TIG welding applications.

• Lightweight & Portable – Weighs only 28.7 lbs (13 kg) with a compact footprint for easy transport.

• Dual Voltage Flexibility – Operates on 115V or 230V input power, automatically adjusting to your work environment.

• Spool Gun Ready – Compatible with optional spool gun for aluminum MIG welding.

• TIG-Ready (EMP 210) – EMP 210 includes a Tweco® 17V TIG torch and is foot-pedal capable for Lift TIG welding.

• Versatile Wire Compatibility – Runs mild steel, stainless steel, flux-cored, and aluminum wire in sizes from .024–.035 in. (0.6–0.9 mm).

• High Duty Cycle – Delivers up to 200A @ 230V, with reliable performance across a wide amperage range.

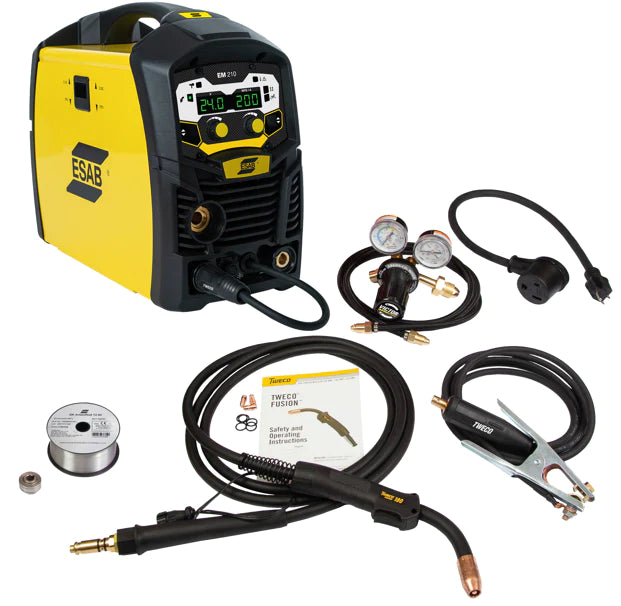

• ESAB Genuine Accessories Included – Both models feature trusted Tweco® Fusion® 180 MIG gun with Velocity® consumables, Victor® Argon/CO₂ regulator, Tweco® ground clamp with heavy-duty 50 mm Dinse connection, 50A-15A power adapter, sample wire spool (2 lb), and multiple drive rolls.

• EMP 210 Advantage – Includes everything from the EM 210 plus a Tweco® 17V TIG torch and electrode holder for added multi-process capability.

Technical Specifications

• Input Voltage: 115/230 V ±15 %, 1-Phase, 50/60 Hz

• MIG Welding Output:

  • 90A @ 18.5V (115V, 40% Duty Cycle)

  • 57A @ 16.9V (115V, 100% Duty Cycle)

  • 200A @ 24V (230V, 15% Duty Cycle)

  • 77A @ 17.9V (230V, 100% Duty Cycle)

• Current Range: 30–200 A

• Voltage Range: 12–24 V (230V), 12–20 V (115V)

• Wire Feed Speed: 2–11 m/min (80–450 in/min)

• Wire Diameter Capacity:

  • Aluminum: .030–.035 in. (0.8–0.9 mm)

  • Cored Wire: .030–.035 in. (0.8–0.9 mm)

  • Stainless Steel: .024–.030 in. (0.6–0.8 mm)

  • Mild Steel: .024–.030 in. (0.6–0.8 mm)

• Max Spool Diameter: 4 in. (100 mm) & 8 in. (200 mm)

• Open Circuit Voltage: 68 VDC

• Dimensions (L × W × H): 19.2 × 8.7 × 15 in. (487 × 221 × 381 mm)

• Weight: 28.7 lbs (13 kg)

• Enclosure Class: IP21S

• Certification: CSA

Why Choose the ESAB EM 210 or EMP 210?

For welders who demand professional results in a portable package, the ESAB EM 210 and EMP 210 are unbeatable. From light fabrication and automotive repair to farm, maintenance, or home projects, these inverter welders deliver superior arc performance, dual-voltage versatility, and trusted Tweco® and Victor® accessories right out of the box. Choose the EM 210 for MIG-only applications or step up to the EMP 210 for multi-process MIG/TIG/Stick capability.
