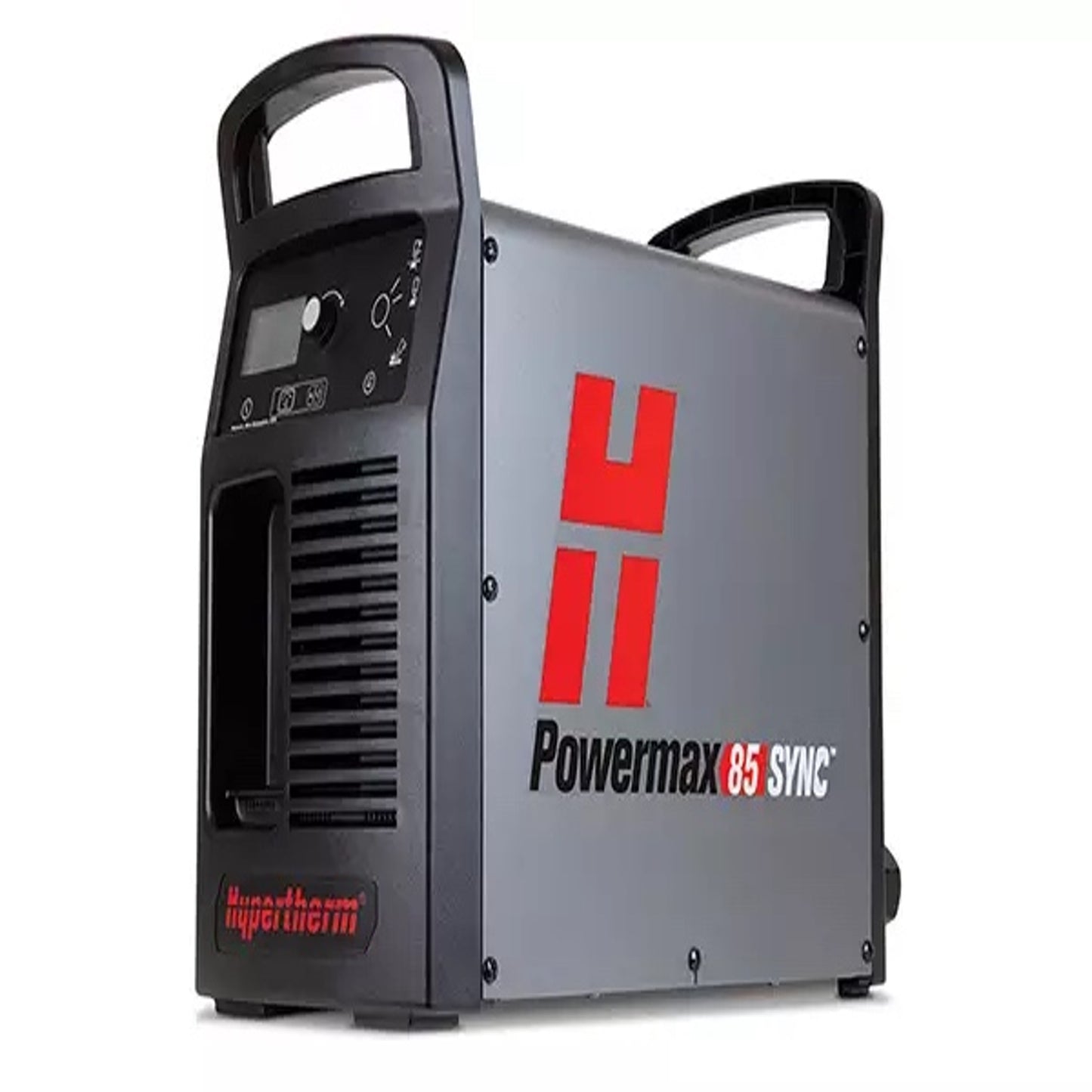

Powermax85 SYNC® Plasma Cutter – High-Performance Cutting & Gouging

Powermax85 SYNC® Plasma Cutter – High-Performance Cutting & Gouging

The Powermax85 SYNC® is a next-generation professional-grade air plasma cutter, engineered for superior performance in cutting and gouging applications. Designed for maximum productivity, this plasma system features an advanced RFID-enabled SmartSYNC® torch and a revolutionary single-piece cartridge consumable that provides trackable utilization data for streamlined inventory management.

Key Features:

✅ Effortless Operation – Automated system setup with SmartSYNC® technology for seamless workflow.
✅ Superior Cut Capacity – Cuts up to 25 mm (1") at 500 mm/min (20 ipm), with a severance capability of 38 mm (1.5").
✅ High-Efficiency Gouging – Removes up to 8.2 kg (18.2 lbs.) of metal per hour with a precise gouge profile.
✅ Versatile Power Options – Compatible with 200–600V, single or three-phase power for flexible operation.
✅ Optimized Duty Cycle – 60% duty cycle at 85A ensures continuous high-performance cutting.
✅ Robust & Reliable – Backed by a 3-year warranty on the power supply and 1-year warranty on torches.

Technical Specifications:

• Output Power: 12.2 kW
• Output Current Range: 25–85 A
• Duty Cycle: 60% @ 85A (3-PH), 50% @ 85A (1-PH)
• Gas Supply: Clean, dry air or nitrogen
• Weight: 32 kg (67 lbs.)
• Dimensions: 483 mm D x 233 mm W x 430 mm H (19” D x 9.2” W x 17” H)

The Powermax85 SYNC® is built to maximize productivity, reduce downtime, and optimize consumable management—making it the ideal choice for welders and fabricators who demand precision, efficiency, and reliability in every cut.
