Miller

907757

Miller Multimatic 220 AC/DC Multiprocess Welder

Miller Multimatic 220 AC/DC Multiprocess Welder

$6,225.00 CAD
$6,225.00 CAD
Sale Sold out
Shipping calculated at checkout.
With Wireless Foot Control Part #907757002
With Wireless Foot Control and Dual Cylinder Rack Part # 951000104

Miller Multimatic® 220 AC/DC – Ultimate Multi-Process Welder

The Miller Multimatic® 220 AC/DC is a versatile and powerful multi-process welding machine, designed for professionals and hobbyists who need a high-performing welder for various applications. Whether you’re welding aluminum, stainless steel, or mild steel, this all-in-one welder is your go-to for projects that require reliable, top-quality results. With the ability to switch between MIG, Stick, and TIG welding, the Multimatic® 220 AC/DC is a must-have tool for welding education, training, and versatile workshop projects.

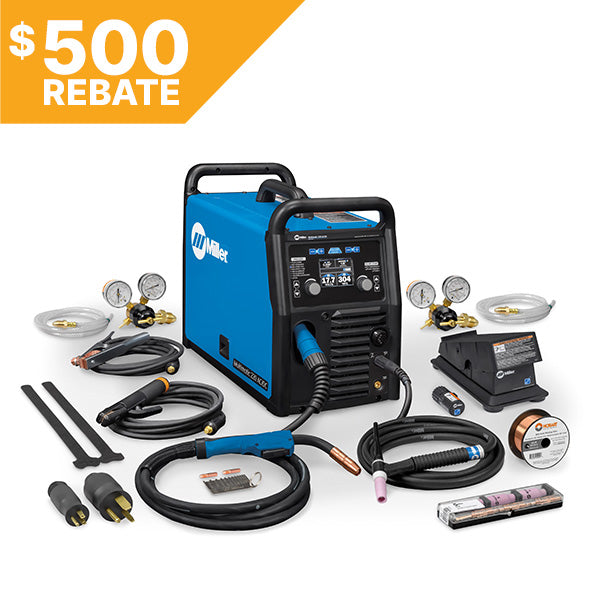

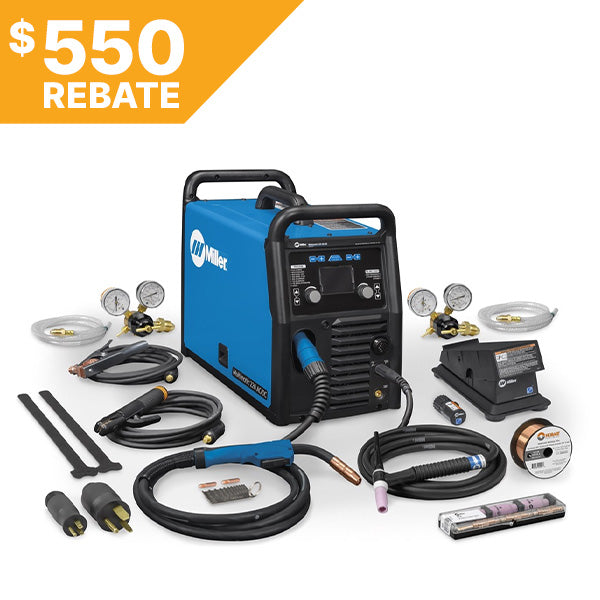

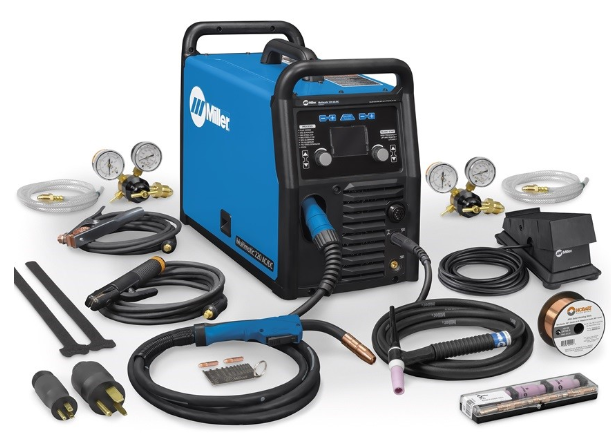

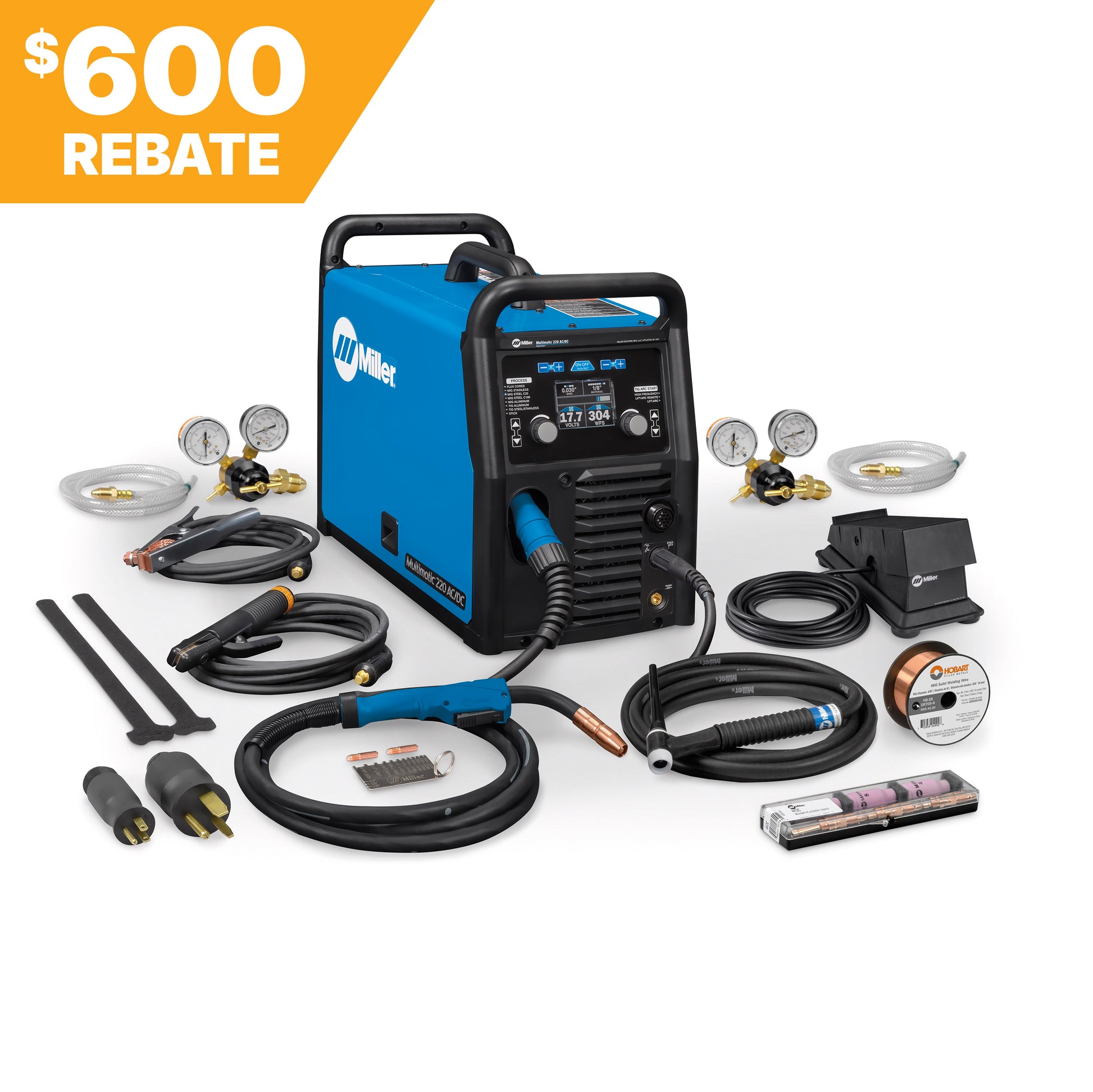

What's Included:

  • Multimatic® 220 AC/DC machine
  • 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
  • 10 ft MDX™-100 MIG Welding Gun
  • 13 ft (4 m) cable electrode holder with 25 mm Dinse-style connector
  • 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
  • RFCS-14 HD foot control with 20 ft (6 m) cord
  • 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
  • Two Argon and AR/CO2 mix regulator/flow gauge with hoses
  • Spool of Hobart® .030 in (0.8 mm) solid wire
  • Two contact tips for .030 in (0.8 mm) wire
  • Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux-cored wire
  • AK2C TIG torch accessory kit
  • Material thickness gauge

Key Features:

  • Processes:
    • Flux-Cored (FCAW)
    • MIG (GMAW)
    • Stick (SMAW)
    • TIG AC (GTAW-AC)
    • TIG DC (GTAW-DC)
    • Multiprocess capabilities
  • Weldable Metals: Aluminum, Stainless Steel, Steel
  • Amperage Range: 30 A - 230 A for flexible power
  • Material Thickness:
    • Mild Steel: 24 ga. - 3/8 in. (MIG), 16 ga. - 3/8 in. (Stick), 24 ga. - 1/4 in. (TIG)
    • Aluminum: 24 ga. - 1/4 in. (TIG), 18 ga. - 3/8 in. (MIG)
  • Input Voltage: Dual voltage capability (110/115/120 V and 220/230/240 V)
  • Input Phase: 1-Phase
  • Input Hz: 50/60 Hz
  • Current Type: AC / DC
  • Max Open Circuit Voltage: 46 VDC
  • Wire Feed Speed: 1.5 m/min - 15.2 m/min for MIG and 60 m/min - 600 m/min for various applications
  • Welding Mode: Constant Current (CC) / Constant Voltage (CV)
  • Portability: Equipped with handles and optional running gear/cart for enhanced mobility

Specifications:

  • Net Width: 11.25 in
  • Net Height: 17.5 in
  • Net Length: 21.5 in
  • Net Weight: 56 lbs
  • Warranty: 3-year Miller's True Blue Warranty ensures long-lasting support and reliability.

Applications:

  • Welding Education and Training
  • General Welding Projects
  • Farm and Ranch Repairs
  • Automotive and Racing Work

The Miller Multimatic® 220 AC/DC is the ideal machine for welders seeking a robust, all-in-one solution for multiple welding processes. With its impressive capability, portability, and ease of use, this welder is perfect for professionals and hobbyists who want to tackle a variety of projects efficiently and effectively.

Get your welding projects completed with precision and versatility with the Miller Multimatic® 220 AC/DC!

With Wireless Foot Control Part #907757002 = $6,225

With Wireless Foot Control and Dual Cylinder Rack Part # 951000104 = $6,959
