Multimatic 215 PRO Multiprocess Welder

Take on any welding job with confidence using the Multimatic® 215 PRO—an industry-leading multiprocess welder engineered for versatility, performance, and all-day reliability. Whether you're in the shop, on the farm, or out in the field, this powerful 120/240V machine delivers professional-grade results across MIG, Flux-Cored, Stick, and DC TIG welding processes.

Built for serious welders and ambitious fabricators, the Multimatic® 215 PRO handles everything from light-gauge sheet metal to heavy-duty 3/8" steel and aluminum. With an extended duty cycle and rugged construction, it’s designed to keep up with demanding workloads without missing a beat.

Key Features & Benefits

True Multiprocess Capability
Switch seamlessly between MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), and DC TIG (GTAW-DC) welding—ideal for automotive work, fabrication, repair, and more.

Dual Voltage Flexibility (120V/240V)
Plug in wherever the job takes you. MVP adapter plugs allow quick connection to standard household or shop power, making this welder perfect for both mobile and in-shop use.

Auto-Set™ Technology
Dial in the right settings fast. Auto-Set simplifies setup by automatically selecting optimal parameters based on material thickness and wire type—perfect for saving time without sacrificing weld quality.

High Output & Wide Range
With 20–230 amps of output, tackle materials from 24 gauge up to 3/8 inch with ease across steel, stainless, and aluminum applications.

Enhanced Duty Cycle
Designed to weld longer with fewer interruptions, helping you stay productive on bigger jobs.

USB-Enabled Updates
Stay current with the latest performance enhancements and feature upgrades via simple USB connectivity.

Professional-Grade Build & Ergonomics
Compact, portable design with integrated handle options and optional running gear makes transport easy without compromising durability.

Applications

• Automotive welding and car restoration
• General fabrication and metalworking
• Farm, ranch, and repair jobs
• Mobile fabrication and maintenance (MRO)
• Welding education and training
• Custom builds and project work

Weldable Materials

• Mild Steel
• Stainless Steel
• Aluminum

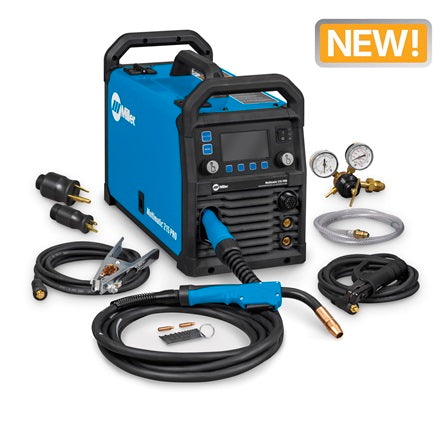

What’s Included

• Multimatic® 215 PRO power source
• 15 ft. MDX™-100 MIG gun
• 15 ft. electrode holder with Dinse-style connector
• 15 ft. work cable with clamp
• 6.5 ft. power cord with MVP™ 120V/240V adapters
• Argon/AR-CO₂ regulator with hose
• Contact tips for .030 in wire
• Quick Select™ drive roll system for multiple wire sizes
• Hook-and-loop cable wraps
• Material thickness gauge (#229895)

Specifications

• Amperage Range: 20–230 A
• Input Power: 120/240V, Single Phase, 50/60 Hz
• Output Type: DC
• Max OCV: 57 VDC
• Wire Feed Speed: 60–600 IPM (1.5–15.2 m/min)
• Dimensions: 20" L × 9.75" W × 14.625" H
• Warranty: 3-Year Miller True Blue® Warranty

Why Choose the Multimatic 215 PRO?
If you need one machine that can truly do it all, the Multimatic 215 PRO stands in a class of its own. From precision TIG work to heavy-duty MIG fabrication, it delivers consistent arc performance, intuitive controls, and rugged reliability—making it the go-to choice for professionals and serious DIY welders alike.

Get more done with one machine—upgrade to the Multimatic 215 PRO today.
