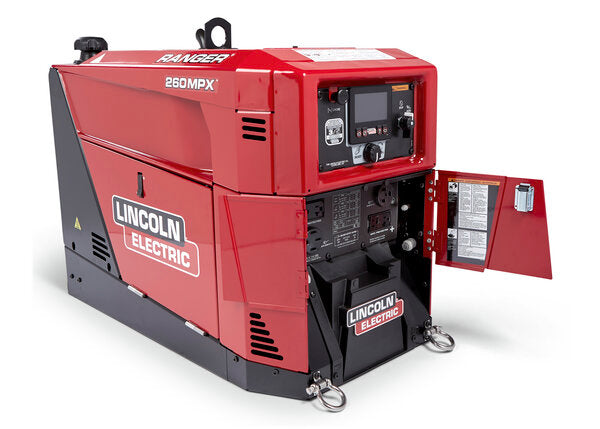

Ranger® 260MPX™ Engine Driven Welder – Powerful, Reliable, and Compact
Ranger® 260MPX™ Engine Driven Welder – Powerful, Reliable, and Compact
Ranger® 260MPX™ Engine Driven Welder – Powerful, Reliable, and Compact
$950 VISA Gift Card Rebate
When you buy the Ranger® 260MPX™ Engine Driven Welder, you’re eligible for a $950 VISA gift card rebate. This limited-time offer is available from July 1st to September 30th, 2024 (Canada only). For full rebate details and to submit a claim, visit lincolnrebates.com.
The Ranger® 260MPX™ Engine Driven Welder is designed to handle a variety of welding and power generation applications with ease. Featuring multi-process capabilities, including stick, TIG, MIG, and flux-cored welding, the Ranger® 260MPX™ excels in construction, fabrication, and maintenance jobs. This welder/generator combination is perfect for professionals who require portability, advanced technology, and clean power for a wide range of tools and sensitive equipment.
With its small size, lightweight construction, and quieter operation, the Ranger® 260MPX™ is the ideal solution for demanding jobsite conditions. It’s the perfect choice for professionals who need reliable welding performance and a dependable power source for tools, all in one machine.
Key Features & Benefits:
-
Multi-Process Versatility – The Ranger® 260MPX™ supports a variety of welding processes:
- Stick (SMAW)
- TIG (GTAW)
- MIG (GMAW)
- Flux-Cored Self-Shielded (FCAW-S)
- Flux-Cored Gas-Shielded (FCAW-G)
-
Compact, Portable Design – With dimensions of 26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm) and a net weight of 446 lbs (202 kg), this engine-driven welder is up to 25% lighter and up to 60% quieter than other models in its class, offering easy maneuverability and reduced jobsite noise.
-
Clean Power Generation – The Ranger® 260MPX™ offers 9,500 watts of continuous auxiliary power at 120/240V, perfect for running a variety of tools and sensitive equipment, such as laptops and plasma cutters. 5% Total Harmonic Distortion (THD) ensures clean power, and you can weld and generate power simultaneously, increasing jobsite productivity.
-
Engine-Powered Performance – Powered by a 23.5 HP Kohler® OHV Command CH730 engine, the Ranger® 260MPX™ is built for rugged reliability with an 11-gallon fuel tank for extended run times. The engine features a high idle speed of 3,600 RPM and an oil capacity of 2.0 quarts (1.9 L), ensuring efficient operation and easy maintenance.
-
Advanced Technology – The Ready.Set.Weld® technology simplifies machine setup with optimal settings, while Chopper Technology® improves arc control. CrossLinc® remote technology allows for arc adjustments directly at the weld, and maintenance alerts help keep the machine running smoothly.
Specifications:
- Dimensions (H x W x D): 26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm)
- Net Weight: 446 lbs (202 kg)
-
Processes Supported:
- Stick (SMAW)
- TIG (GTAW)
- MIG (GMAW)
- Flux-Cored Self-Shielded (FCAW-S)
- Flux-Cored Gas-Shielded (FCAW-G)
- IEC Rating: 231A / 29.2V / 100% @ 104°F (40°C)
- Max Rating: 260A / 26V / 100% @ 104°F (40°C)
-
Output Range:
- CC-Stick: 35 – 260 Amps
- Touch Start TIG: 20 – 250 Amps
- CV-Wire: 14 – 28 Volts
-
Engine:
- Engine Brand & Model: Kohler OHV Command CH730
- Engine Description: 2 Cylinder Air-Cooled Gasoline Engine
- Engine Horsepower: 23.5 HP
- Fuel Tank Size: 11 US gallons (41.6 L)
- Oil Capacity: 2.0 qts. (1.9 L)
-
Auxiliary Power:
- 9,500 Watts Continuous, 120/240V
- Receptacle Types: NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
- Warranty: 3 Years Parts and Labor (engine warranted separately by engine manufacturer)
Typical Applications:
- Construction
- Field Erection
- General Fabrication
- Maintenance & Repair
- Repair Welding
- Structural Fabrication & Welding
